Material no.: 0510545001Request a quote

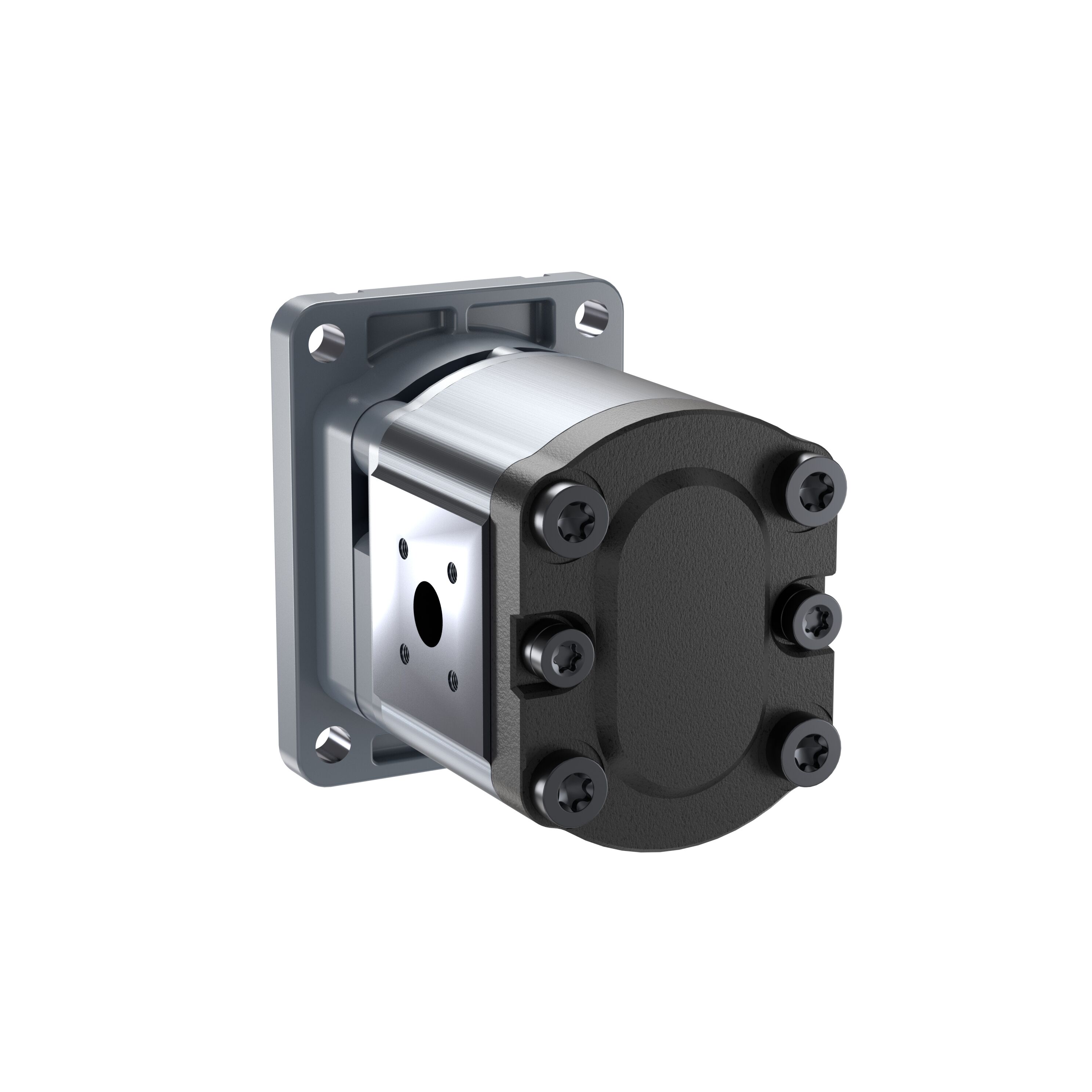

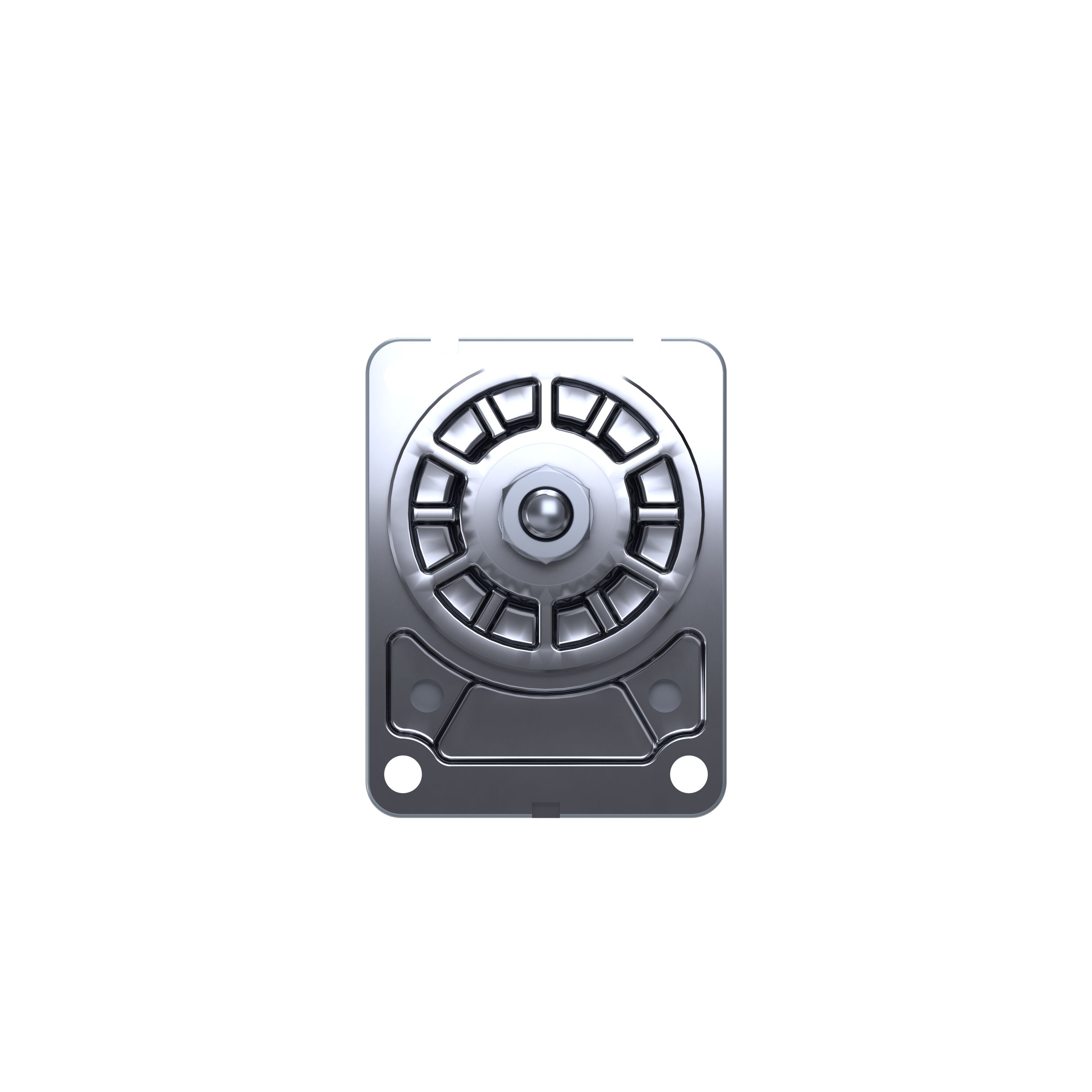

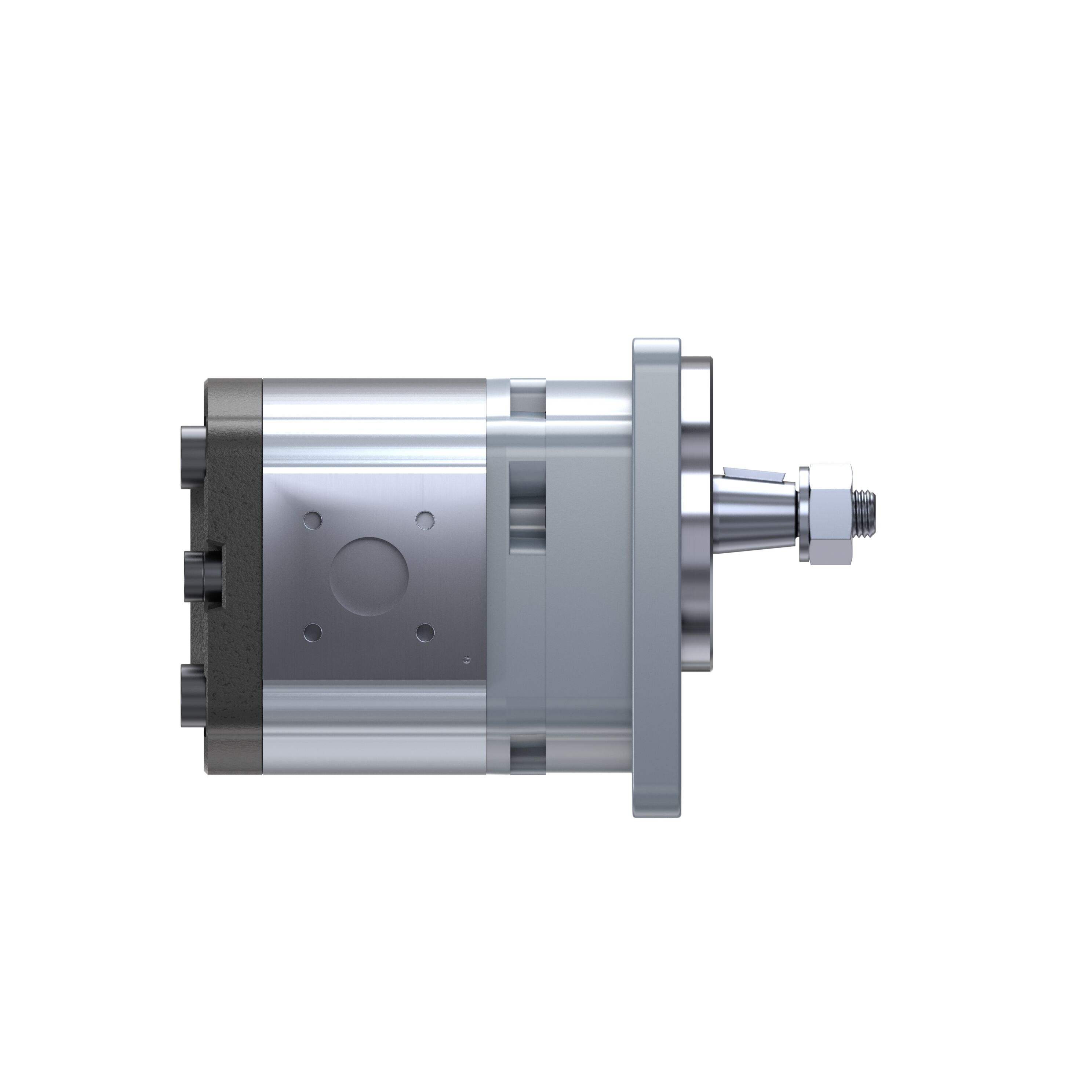

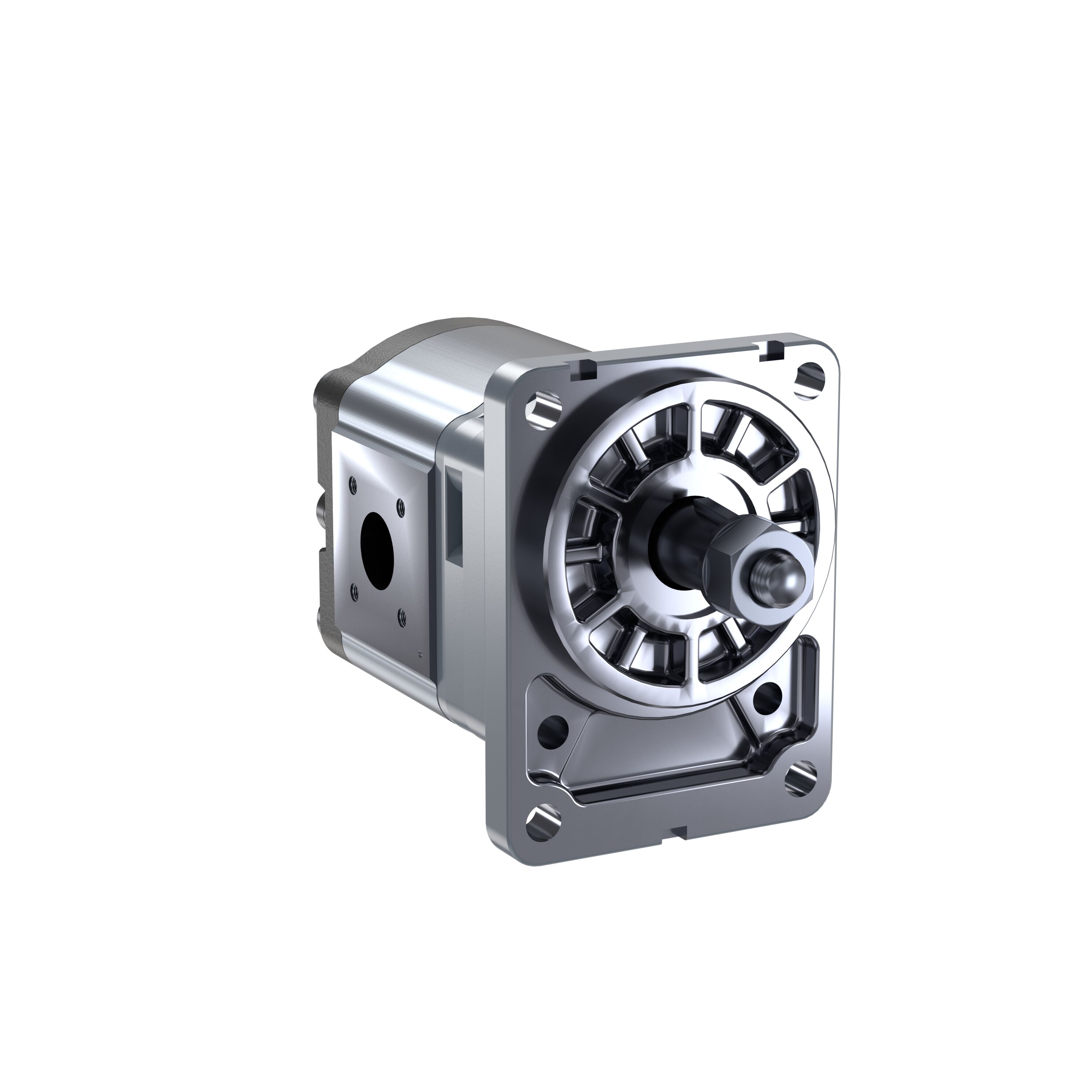

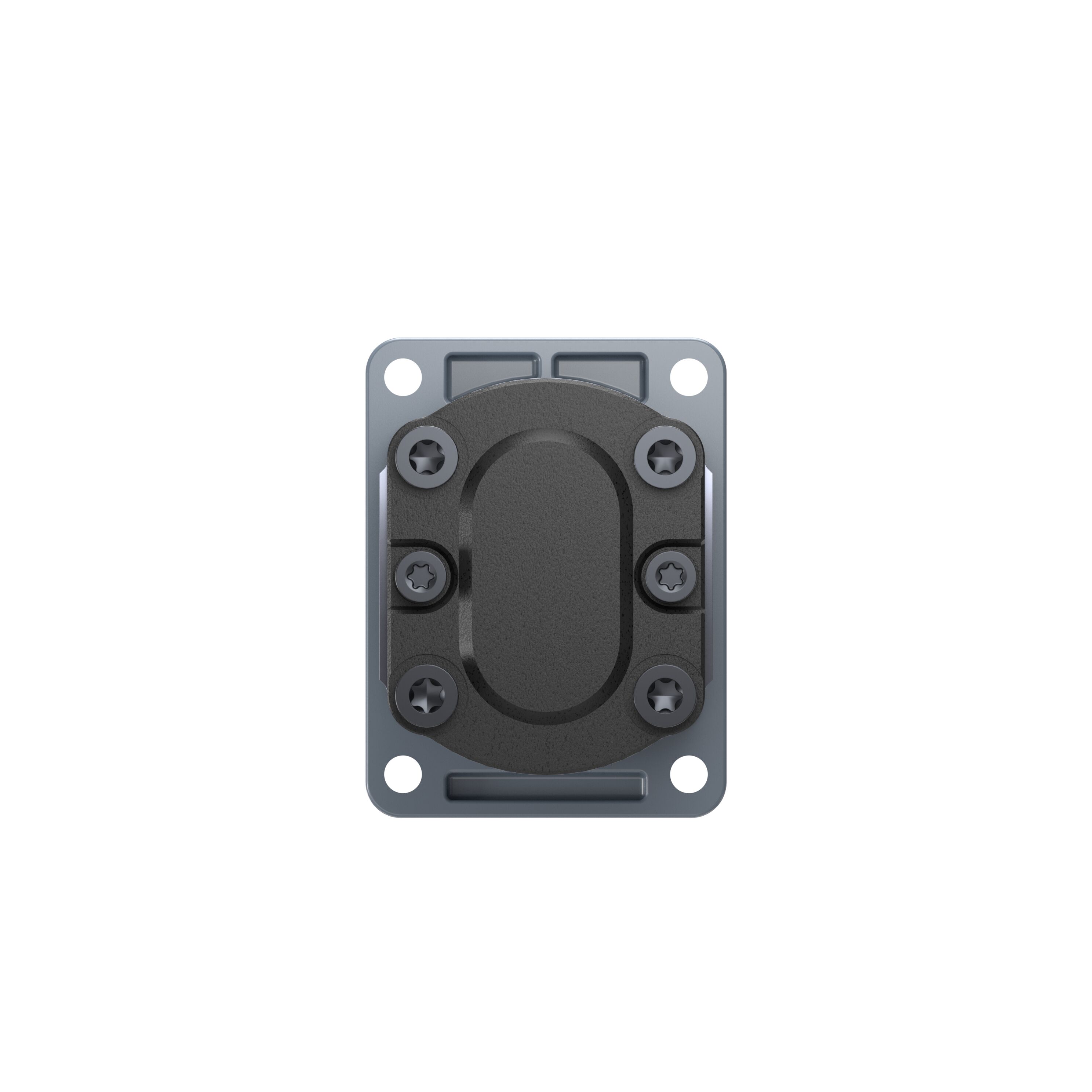

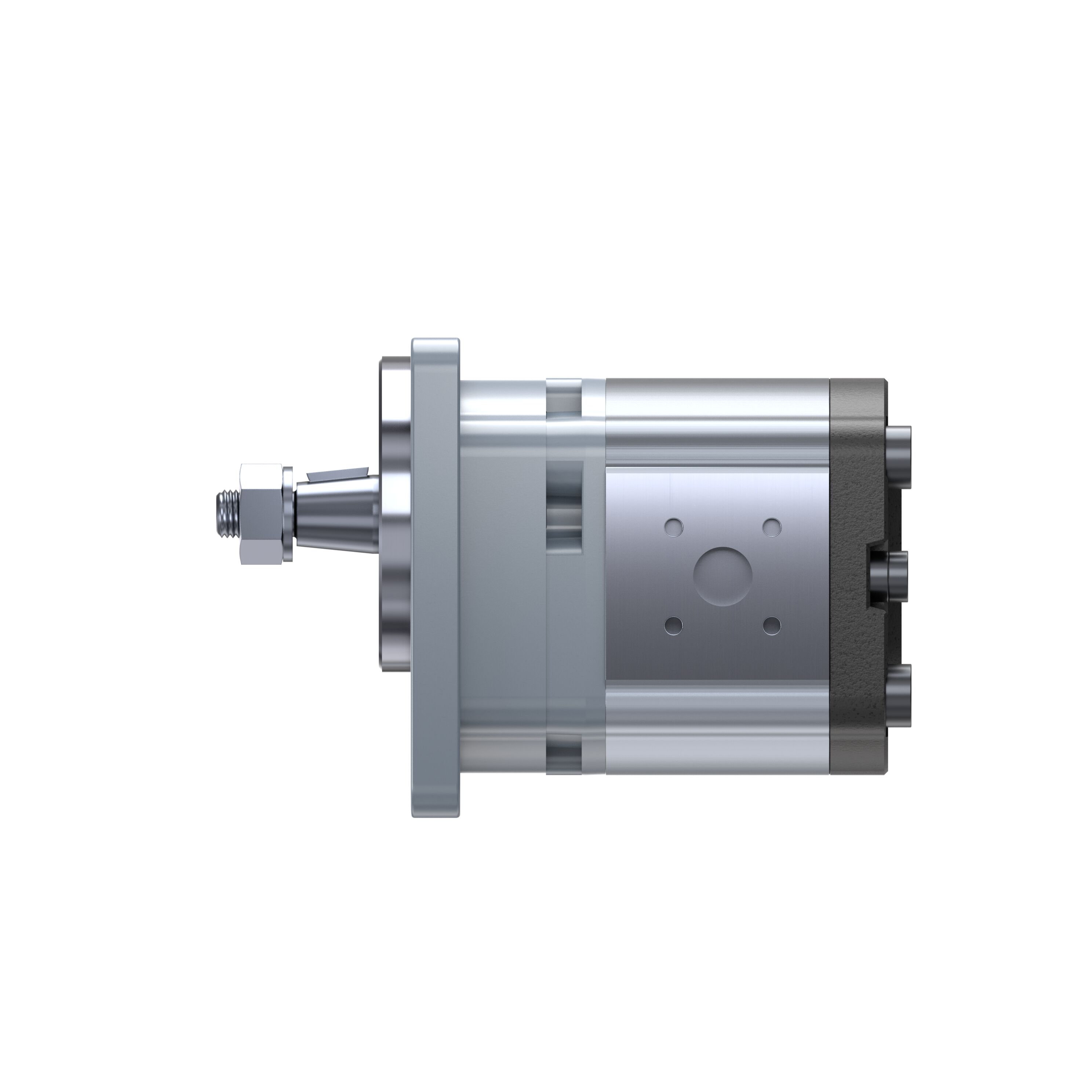

HYDRAULIC GEAR PUMP
"11 cm³/rev, clockwise rotation, Conical 1:5, Front bearing Ø 80 mm type 1, Square flange DIN 3901/3902"
Pricing
Fetching realtime price…
Realtime pricing provided by Bosch Rexroth. Prices exclude VAT unless stated.
Specifications
Gross weight3444 g
Net weight3444 g
Max. flow38.5 l/min
Nominal size11 cm³/rev
Max. intermittent pressure280 bar
Maximum rotational speed3500 rpm
Drive shaftTapered 1:5 for front cover A
Direction of rotationClockwise rotation
Front coverOutrigger dia. 80 mm (type 1)
Housing materialAluminum
Noise levelStandard noise level
ProductExternal gear unit
FunctionPump
ModelHigh perf (F) (4..28 cm³/rev)
SeriesBearing diameter 18 mm
VersionPhosphated, aligned covers
Port connectionSquare flange (German version)
Sealing materialNBR
Rear coverStandard (cast iron)
Non-standard versionDeviations from catalogue standards, see drawing
Weight3.45 kg
Key Features
Long service life
Consistent high quality based on large-volume production
Port connections: flanged or threaded
Drive shafts according to ISO or SAE and customer specific solutions
Slide bearings for high loads
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
